KV-L20 ELE/DA

Name: KV-L20 ELE/DA
Brand: HKC
SKU: KV-L20-ELE/DA
Availability: InStock

Size

Electric Actuator

Clear

SKU: KV-L20-ELE/DA Categories: Actuated Valves, Electric Actuator Brand: HKC, KI

Description

ASTM A351 CF8M 316 Stainless Steel body, 316 trim, TFM 1600 Ball Seats, PTFE Seals, FKM O’Ring.
Self-Adjusting Stem.
Direct Mount.
Anti-Static Devices for Ball, Stem and Body.
-29/+210°C Temp Rated (Pressure Dependant).
Fitted with Quarter Turn Double Acting (Power Open/Power Close) Electric Actuator.

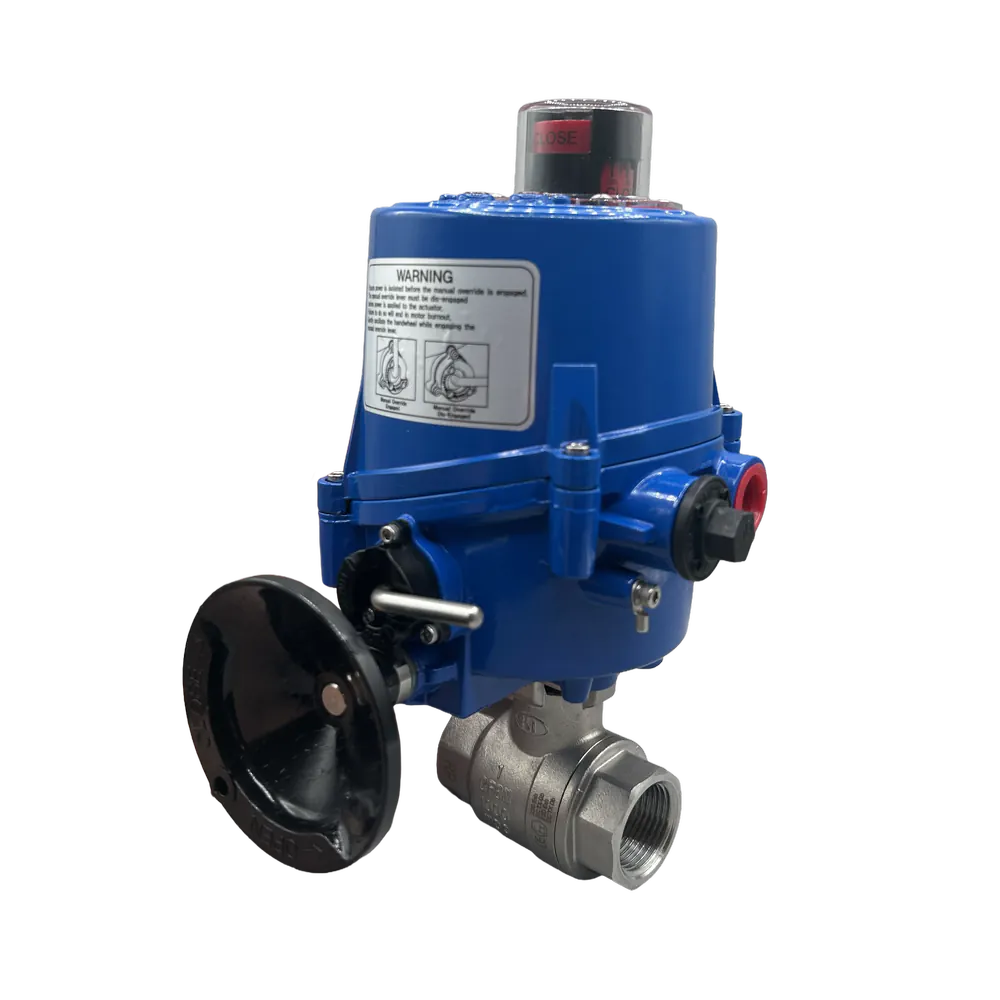

Model shown is the HQ5.
All electric actuators have manual override facility, open/close visual indication, IP67 rating, anti-condensation heater & limit switches.
Output torques of 40 to 3,000 Nm available.

Topworks	Select an option...
Stem	Select an option...
Torque	Select an option...
Material	316L, FKM, PTFE, TFM1600
Pressure	1000PSI
Connection	BSP
Electric Actuator	HQ15 110v AC, HQ15 240v AC, HQ30 110v AC, HQ8 110v AC, HQ8 240v AC, HQ5 110v/240v AC, HQ5 24v AC/DC
Temp Range	-29°C to 210°C
