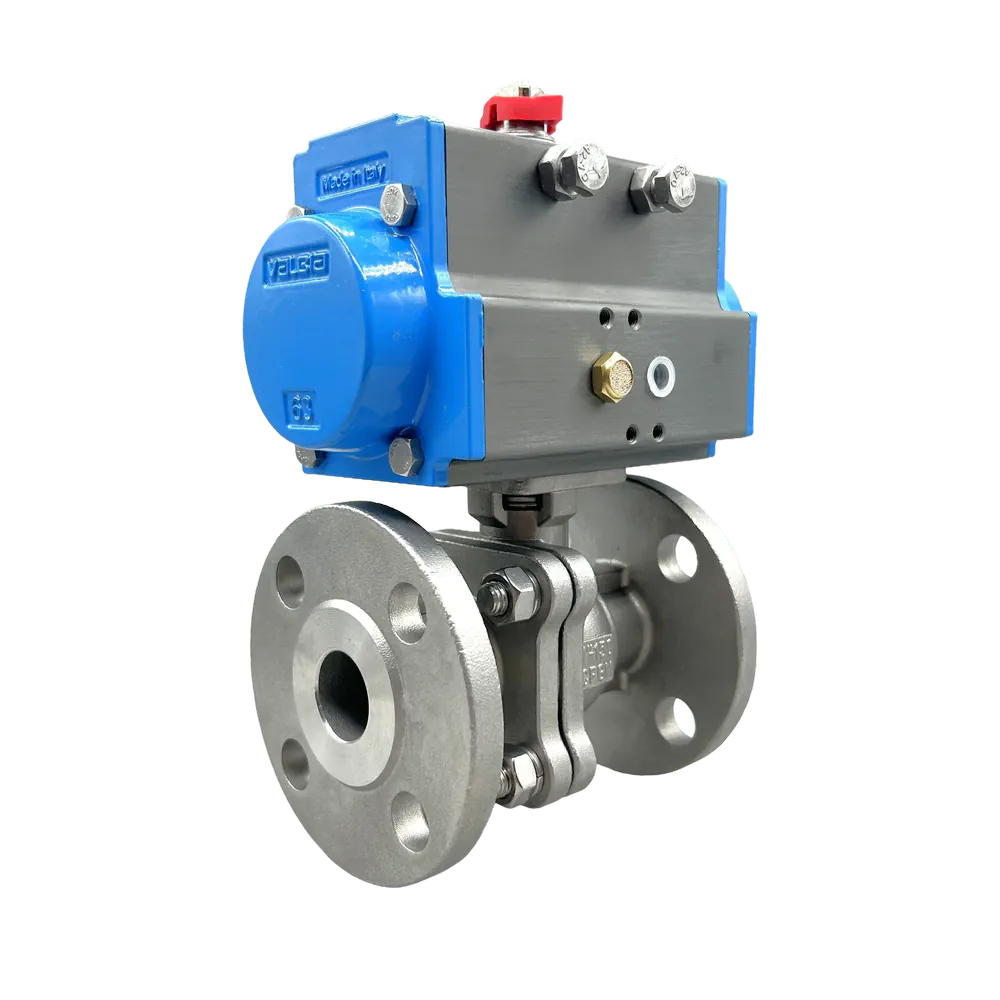

NTC KV-L61 PNU

Name: NTC KV-L61 PNU
Brand: KI
SKU: NTC KV-L61 PNU
Availability: InStock

Size

Pneumatic Actuator

Valve Position Monitor

Ball Seat

Solenoid

Extension

Vent hole

V-Ball

Indicator

Clear

SKU: NTC KV-L61 PNU Categories: Actuated Valves, NTC Flanged, NTC Valves, Pneumatic Actuated Brand: KI, NTC, Valbia

Description

ASTM A351 CF8M 316 Stainless Steel Body
316 Trim
TFM 1600® Ball Seats
316/Grafoil Body Seal
Grafoil Stem Seal
FKM O’Ring
Direct Mount
Self-Adjusting Stem
-29/+230°C Temp Rated (Pressure Dependant)
Anti-Static Devices for Ball, Stem and Body
DA Double Acting Pneumatic Actuated (Air/Air)
SA Single Acting Pneumatic Actuated (Air/Spring)
Torque figures shown based on 10 bar/g clean water
Torque figures shown do not include any safety factor
All Actuator Packages are fully assembled and functionally tested (dry bench test on 5.5 bar/g air supply)
