3-Pce Butt Weld Full Bore Ball Valve Lever Operated ETG-M-3BW
Technical Documents

Product Standards

Material:
ASTM A351 CF8M 316
Design:
ASME B16.34
Wall Thickness:
ASME B16.34
Testing:
API 598
Connection:
ASME B16.25 (Sch 40)
ETG

ETG M-3BW

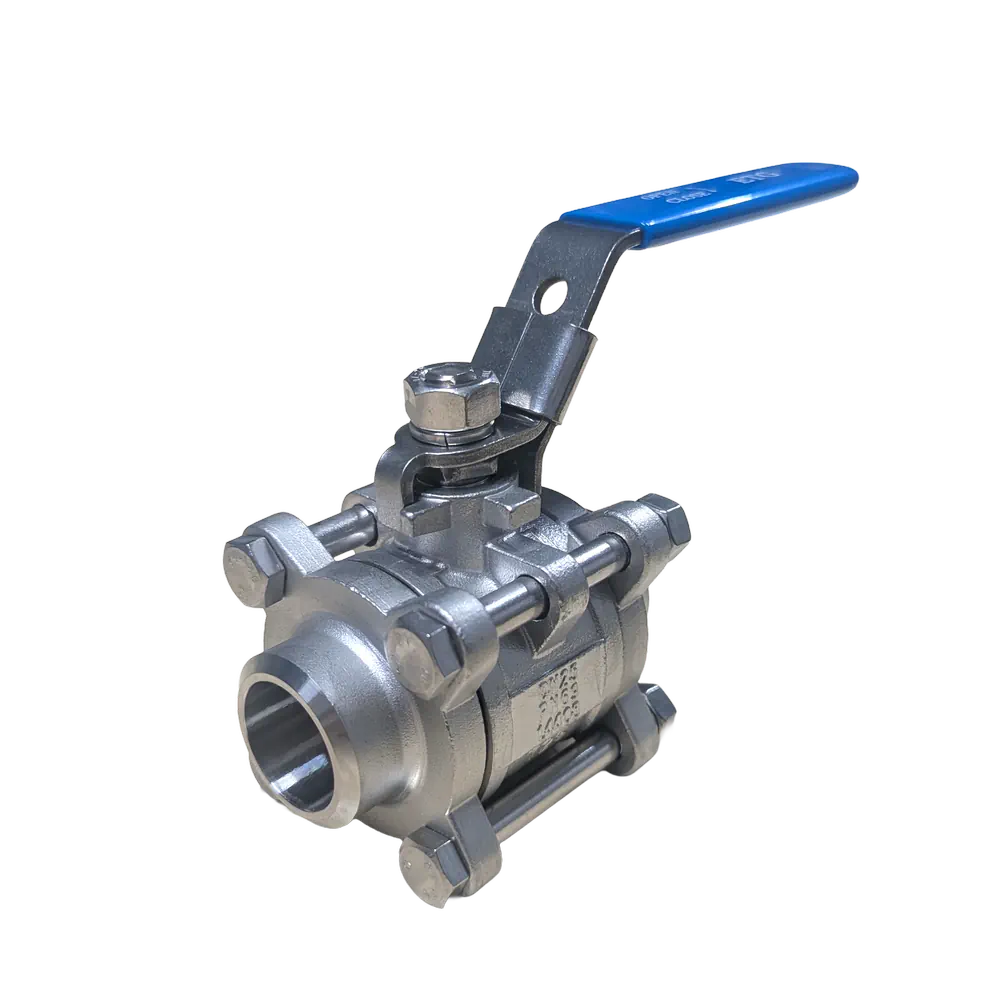

3-Pce Butt Weld Full Bore
Ball Valve Lever Operated

SKU: ETG M-3BW Categories: , Brand:

Description

A good quality, general purpose ball valve suitable for most liquid and gaseous duties.

  • ASTM A351 CF8M 316 Stainless Steel Body & Ends
  • 316 Trim
  • PTFE Ball Seats and Seals
  • Full Bore
  • Locking Lever
  • 1000 PSI rated sizes 1/4″ – 2″
  • 600 PSI rated sizes 2-1/2″ – 4″
  • Butt-Weld Ends to ASME B16.25 (Sch 40)
  • -25/+180°C Temp rated

Take a look on gcstainless.co.uk

For any variation unavailable on this page, please contact us.

Additional information

Weight N/A
Dimensions N/A
Topworks Select an option...
Stem Select an option...
Torque Select an option...
Material

Pressure

,

Temp Range -25°C to 180°C
